Description

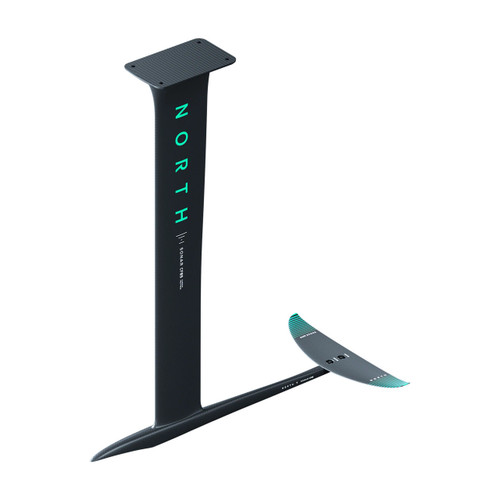

SONAR CF
Carbon Foil Edition
Mast Options: CF72 / CF85
Includes:
- Carbon CF72 or CF85 Mast with cover
- C700 Fuselage
- S270 Stabilizer with cover
- Tool Kit
- Sonar Fuselage Screw Pack B (M8x35 Screws, M8 Flat Washers)
- Sonar Stabilizer Screw Pack C (M8x16mm)*
- Sonar Travel Bag
- Front Wings Sold Separately**
- Foil to board mounting screws sold separately**
Insane response. Incredible performance. Our highest quality pre-preg carbon modular foil edition provides a stiffer, more direct feel and more immediate feedback. Engineered with exceptional stiffness for all disciplines, the CF Edition is made from lightweight and durable carbon pre-preg components and has a reduced swing weight for an agile, dynamic and direct feel, and great pumpability. The refined one-piece mast design is tapered for optimal load transfer and lower surface friction, and features our unique GeoLock system. The longer CF85 mast increases overall ride performance in choppy conditions. The CF72 mast is ideal for shallower waters, prone surf foiling and towing. For 2022 we’ve added stability, performance and efficiency with the 700mm Carbon Pre-Preg Fuselage and new S270 Carbon Pre-preg Stabilizer.
Features
- Sonar CF85 or CF72 Mast
- GeoLock Load Bearing Connection
- NEW S270 Carbon Stabilizer with easy breach recovery
- Industry-standard 165x90mm bolt pattern
- C700 Carbon Fuselage
- Modular foil system
- Supplied with Sonar CF Edition Travel Bag
- Front Wings Sold Separately
- Foil to board mounting screws sold separately
North Foil Hardware Guide
| Connection | Model | Head | Qty and Length | Diameter |
|---|---|---|---|---|
| Board Adaptor to Board | Recessed Star | 4 x 30mm | M8 | |
| Board Adaptor to Mast (A) | Recessed Star | 2 x 40mm | M8 | |
| Alloy Fuselage to Mast (B) | Star Socket | 2 x 35mm | M8 | |
| Carbon Fuselage to Mast (B2) | Recessed Star | 2 x 30mm | M8 | |
| Fuselage to Stabilizer (C) | Recessed Star | 2 x 16mm | M8 | |
| Front Wing to Fuselage (D-I) | MA v2 700 | Recessed Star | 3 x 23mm | M8 |
| Front Wing to Fuselage (D-I) | MA v2 850 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | MA v2 1050 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | MA v2 1200 | Recessed Star | 3 x 30mm | M8 |
| Front Wing to Fuselage (D-I) | MA v2 1500 | Recessed Star | 3 x 33mm | M8 |
| Front Wing to Fuselage (D-I) | MA v2 1850 | Recessed Star | 3 x 35mm | M8 |
| Front Wing to Fuselage (D-I) | MA v2 2100 | Recessed Star | 3 x 35mm | M8 |
| Front Wing to Fuselage (D-I) | MA v2 2400 | Recessed Star | 3 x 40mm | M8 |
| Front Wing to Fuselage (D-I) | SF 580 | Recessed Star | 3 x 23mm | M8 |
| Front Wing to Fuselage (D-I) | SF 680 | Recessed Star | 3 x 23mm | M8 |
| Front Wing to Fuselage (D-I) | SF 830 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | SF 930 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | SF 1080 | Recessed Star | 3 x 30mm | M8 |
| Front Wing to Fuselage (D-I) | SF 1230 | Recessed Star | 3 x 30mm | M8 |
| Front Wing to Fuselage (D-I) | HA 550 | Recessed Star | 3 x 23mm | M8 |
| Front Wing to Fuselage (D-I) | HA 650 | Recessed Star | 3 x 23mm | M8 |
| Front Wing to Fuselage (D-I) | HA 750 | Recessed Star | 3 x 23mm | M8 |
| Front Wing to Fuselage (D-I) | HA 850 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | HA 950 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | HA 1050 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | HA 1150 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | HA 1250 | Recessed Star | 3 x 30mm | M8 |
| Front Wing to Fuselage (D-I) | HA 1450 | Recessed Star | 3 x 30mm | M8 |
| Front Wing to Fuselage (D-I) | Pump 1800 | Recessed Star | 3 x 33mm | M8 |
| Front Wing to Fuselage (D-I) | Pump 2050 | Recessed Star | 3 x 33mm | M8 |
| Front Wing to Fuselage (D-I) | DW 750 | Recessed Star | 3 x 23mm | M8 |
| Front Wing to Fuselage (D-I) | DW 900 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | DW 1100 | Recessed Star | 3 x 25mm | M8 |
| Front Wing to Fuselage (D-I) | DW 1400 | Recessed Star | 3 x 30mm | M8 |
1 Review
-
C75 Review
I’ve used other foil brand masts, both aluminum and carbon and this is by far my favorite. Its super rigid and lightweight. I’ve crashed this thing on the sand bars multiple times, and it hasn’t hurt the SF wings, tails or mast yet. The C75 I like a lot for surfing because it allows you to access more shallow water when popping up on a wave. The Carbon fiber is lighter and will help more with turns as opposed to the aluminum and I can feel the difference in the switch over. If your goal is to surf, carve, and chase after boat wake from a dock I recommend the C75 as it feels light weight to pump and from the slams I’ve had, hard to break.
