Foil Drive Universal Mini Pod Review

Are we seeing double? Two Ryans...in one building? That's right! Ryan from MACkite and Ryan from Foil Drive took the time to discuss an exciting new product: the Foil Drive Universal Mini Pod. This has been a long time coming with a lot of chatter surrounding it, and it's absolutely worth the wait. It's a slick system that makes it incredibly easy to get your motor on and off, converting a single foil for multiple disciplines with ease.

The Evolution of Foil Drive Pods

Ryan from Foil Drive explains exactly where this system started and how much it has improved. Originally, when you got a mast or a pod, you had to know exactly where you were mounting it. You had to use 3D-printed inner adapters for that specific style pod, which featured the standard bullet shape.

Then came the Universal Pod. This version used a rubber inner lining with shims, allowing you to adjust the height and fill in the gaps around your mast. The installation process was less forgiving, though — you had to put the mast on, find the right shim, then install four screws to attach the motor afterwards. It took longer, and if you thought you had it in the right spot but your cable ended up being a little too short or too long, you had to go back to the start and do the whole process twice.

Why the Mini Pod? Less Drag and Better Hydrodynamics

Even though the Universal Pod was a huge upgrade from the original, riders wanted something with less drag. Anytime you have anything moving through the water, it creates drag. The bullet shape is as good as it gets for piercing and penetrating through water, but people wanted a mini pod that was as hydrodynamic as possible. The goal was to get as close to an integrated, streamlined mast as you can get, and the Mini Pod delivers exactly that.

Ingenious Strap Design and Adjustability

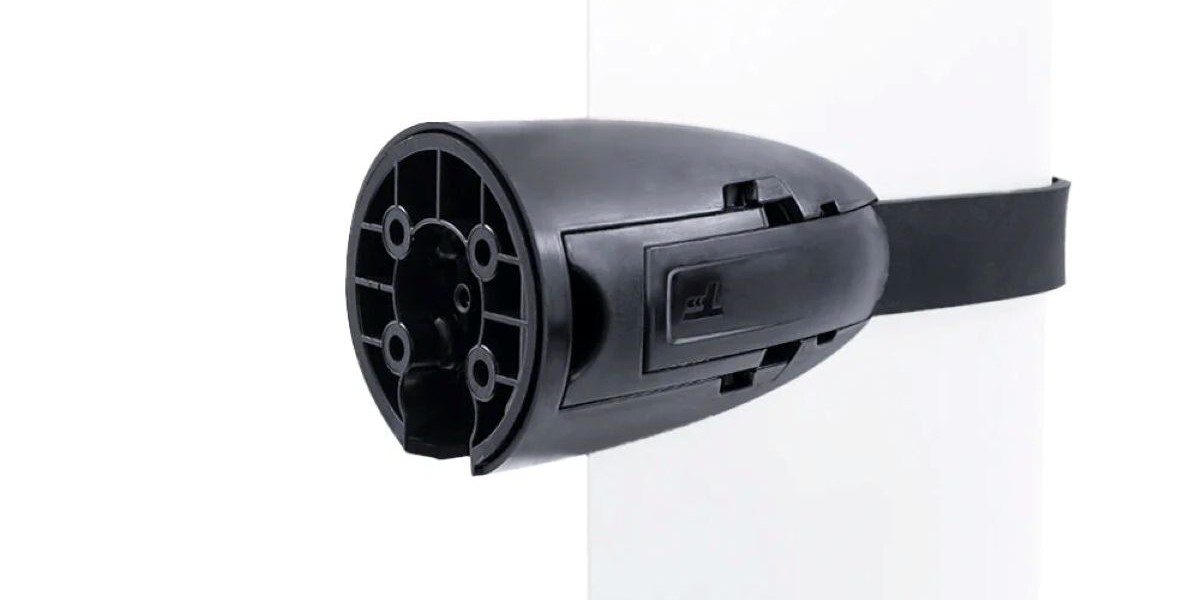

The most ingenious part of the design is the rubber strap. It fits a bunch of different masts while providing the adaptability to always have tension and a camming action. On the inside of the pod, there are up to seven positions where you can adjust the length of the strap. The kit comes with three straps: small, medium, and large. Most riders will find themselves using the medium or the small.

To address concerns about rubber degrading in saltwater over time, Foil Drive thought ahead. The strap features a thin strip of harder material on the inside. It maintains that soft, rubbery feel on the outside but prevents the strap from stretching out too much over time.

Toolless Installation and Cam Lock

Once you have the motor attached to the pod, the system is completely toolless. It slides right onto the mast, hooks in, and uses a cam lock mechanism to clasp on. You can easily pop it on and off. This is perfect for riders who are specific about the angle of their motor or have weird mast shapes with unique trailing edges. You can move it, adjust things, lock it into place, and even retension it if things settle in or get wet.

Versatility: One Mast for Everything

Once set up, it's incredibly easy to head to the beach and decide you just want to wing foil without the motor. If you can only afford one mast, you can use this system and get nearly the performance of an integrated mast. The only difference compared to an integrated mast is the cable drag: the induced drag from water not wrapping smoothly off the trailing edge. More advanced riders might feel that, but otherwise, it's the best option out there. It sits back just a little further than an integrated mast, but the performance is right there.

Quick Swaps: Foil Assist to eFoil

This system opens up the ability to quickly go back and forth between a high motor mount for foil assist and a low motor mount for eFoiling. If you come home from a surf session, charge your battery, and your family wants to eFoil around, it's much easier to do now. You just need the longer eFoil cable, typically the 60cm or 70cm length. Pop the pod off, pull the sleeve, take out the four screws to detach the stator, swap to the new cable, put the screws back on, and clamp it lower on the mast.

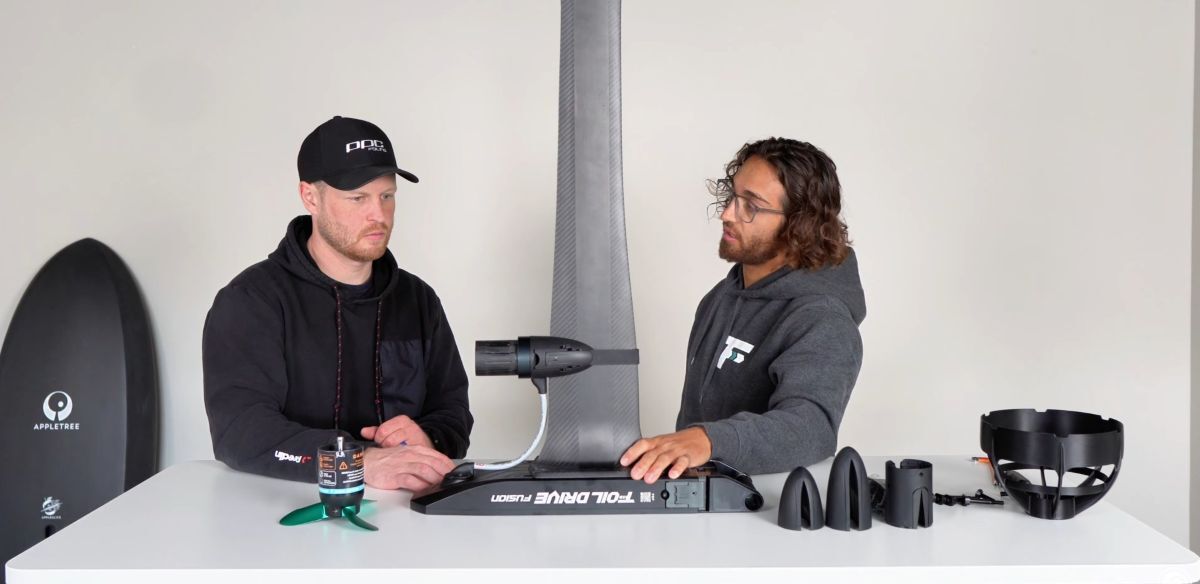

Setup Tips and Cable Routing

When taking the system on and off, you don't have to undo everything. If you're using a Foil Drive Fusion board, you can just unplug the motor, take the unit off the board, and put your normal mast setup on.

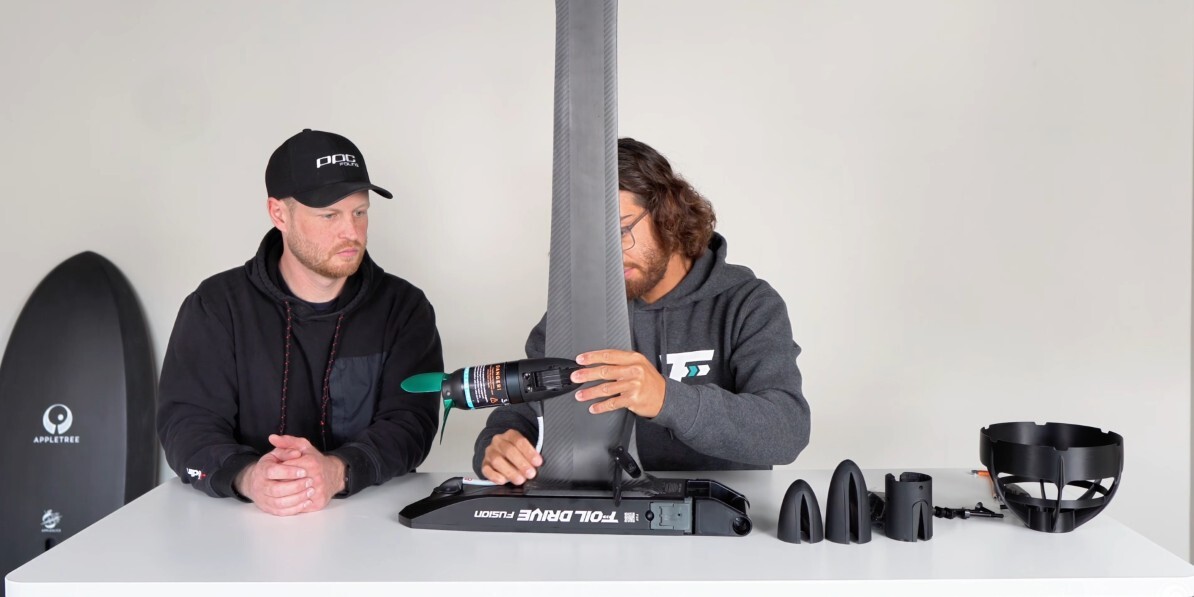

When installing the pod, make sure the cable is tucked really close to the trailing edge of the mast. The included cable guide helps slide it on and keep everything tight. Ryan highly recommends taking the propellers off when installing the pod so you don't accidentally stab or cut anything. Finally, Foil Drive always recommends wrapping electrical tape around the cable and mast to help reduce cable drag.

The MACkite Take

The Foil Drive Universal Mini Pod is the closest you can get to an integrated mast without committing to one — a hydrodynamic, toolless, on-and-off solution that finally answers what riders have been asking for. Here's what makes it worth the wait.

• The hydrodynamic shape gets you nearly integrated-mast performance. The only real difference is a small amount of induced cable drag where water doesn't quite wrap off the trailing edge as cleanly. Advanced riders may feel it, but for the price difference, it's an easy trade.
• The strap design is the secret sauce. The rubber strap fits a wide range of masts with up to seven internal adjustment positions, three strap sizes (small, medium, and large), and a hidden harder-material inner strip to keep saltwater from breaking down the rubber over time.
• Toolless installation makes one mast cover everything. The cam lock pops the pod on and off in under five minutes, so you can foil assist in the morning, wing foil without the motor in the afternoon, and eFoil with the family in the evening — all on the same mast.
• Foil assist to eFoil swaps are now realistic. Pop the pod, pull the sleeve, swap to a 60cm or 70cm cable, reinstall the stator, and clamp lower on the mast for eFoiling. Same gear, completely different experience.
• Use the official product, not a DIY aftermarket pod. Beyond the engineering and warranty coverage, the small touches matter: take the props off during install to avoid cuts, tuck the cable tight against the trailing edge with the included guide, and wrap electrical tape around the cable-and-mast junction to clean up that last bit of drag.
