F-One

F-One Eagle HM Carbon Front Wing

(No reviews yet) Write a Review
Shipping:
Calculated at Checkout
890 August ETA
  • F-One Eagle HM Carbon Front Wing- 790
  • F-One Eagle HM Carbon Front Wing - 890
  • F-One Eagle HM Carbon Front Wing - 990
  • F-One Eagle HM Carbon Front Wing - 1090
$989.00 - $1,119.00


Description

F-ONE EAGLE HM FRONT WING

Sizes: 690 / 790 cm²/ 890 cm² / 990 cm² / 1090 cm² / 1290

The EAGLE HM CARBON is the ideal foil for anybody seeking speed and fantastic downwind abilities. With its 9.5 aspect ratio, very thin profile and upturned winglets, the EAGLE’s induced drag is reduced to a minimum. It is a very efficient foil whose lift will allow you to stay above the water and cruise for longer than you could have ever imagined at any speed.

Simultaneously, its upwind abilities are noteworthy, bringing comfort, stability, and constant speed to your wing foiling rides. Pumping is effective and precise, and maneuvering will feel easy in any conditions. Finally, the traction in your arms is reduced while wing foiling, thanks to the low drag of this foil.

Built using the Monobloc structure with pre-preg carbon, the foils are both very light and strong. This setup brings improved load transmission and better stiffness throughout the different parts for maximum control. The High Modulus Carbon fiber layup leads to even more rigidity and dependability that will propel you to incredible performances in each session. The TITAN connection allows to plug in either an aluminum or carbon mast, and the fuselage is split in two to facilitate transport.

The EAGLE HM CARBON foils are available in 790 cm², 890 cm², 990 cm², and 1090 cm² to satisfy a wide range of riders looking for exhilarating sensations in wing foil and downwind. They are recommended with the DW210 HM stab, just as thin as the front wing. This stabilizer will allow you to gain even more speed and pumping efficiency.

  • Aspect Ratio: 9.5
  • Remarkable speed and downwind performances
  • Unrivaled time above the water
  • Thin and optimized design for minimal drag

Size Range:

FRONT WING SIZE AREA (cm²) SPAN (cm) ASPECT RATIO WEIGHT (kg)
Eagle 690 690 82 9.7 0.92
Eagle 790 790 86,5 9,5 1.10
Eagle 890 890 92,5 9,6 1.23
Eagle 990 990 97 9,5 1.31
Eagle 1090 1090 102 9,5 1.48
Eagle 1290 1290 110.5 9.5 1.58

Program:

SPEED CARVING PUMPING GLIDE RATIO
100% 90% 90% 100%

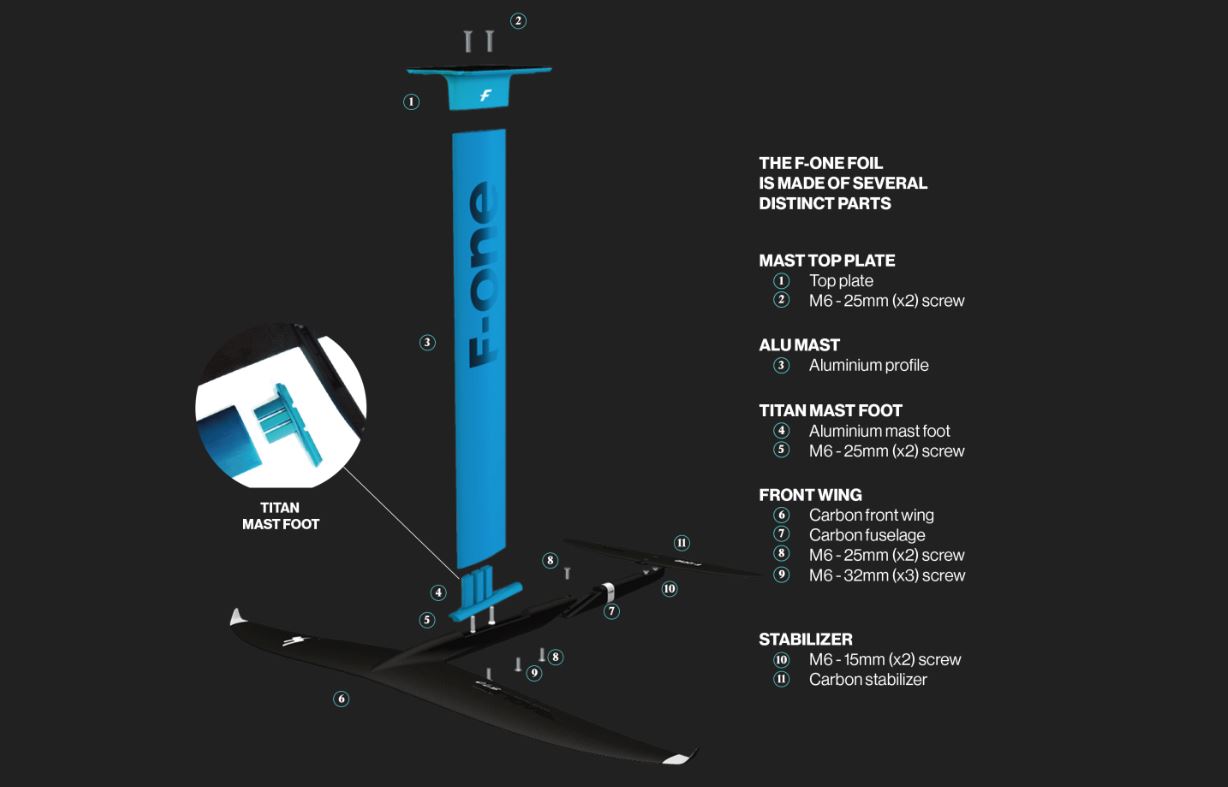

Connection Head Qty and Length Diameter
FW to RW Tail Split Carbon Fuse Recessed Star 2 x 25mm M6
RW Stabilizer to Fuse Recessed Star 2 x 15mm M6
Mast to Titan Mast Foot Recessed Star 2 x 25mm M6
Mast to Top Plate Recessed Star 2 x 25mm M6
Mast to Carbon FW Fuse Recessed Star 3 x 30/32mm M6
Mast to Aluminum Fuse Recessed Star 2 x 25mm M6
Mast Plate to Board Recessed Star 4 x 25mm M6
FCT front wing Recessed Star 4 x 14mm M6
4-Point Foil Mount Adapter Plate Recessed Star 4 x 15mm M6
