AFS

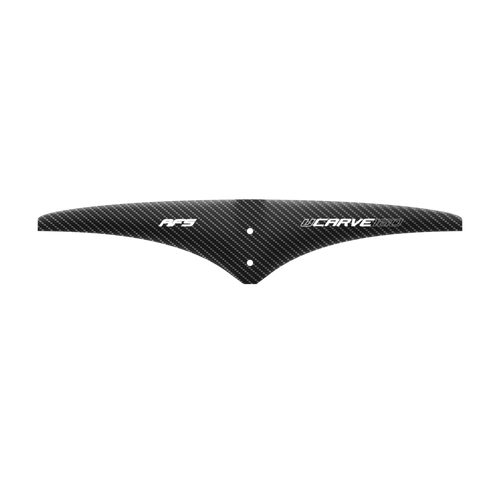

AFS U-CARVE Stabilizer Wing

(No reviews yet) Write a Review
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
  • AFS U-CARVE Stabilizer Wing - 160
  • AFS U-CARVE Stabilizer Wing - 130
  • AFS U-CARVE Stabilizer Wing - 140
$279.00

Frequently bought together:

Description

AFS U Carve Stabilizer

The U Carve: glide, precision, and pure carving feel.

Sizes: 130 / 140 / 150 / 160


What AFS has to say:

The U Carve: glide, precision, and pure carving feel. The U Carve range was designed around a full base concept, with a generous footprint to ensure rigidity and precise support. Its reduced wingspan and refined tips recenter lift: roll is completely eliminated for a more surfy, playful feel and ultra-natural carving. Despite this compact design, every detail of the profile has been optimized – thickness, camber, transitions – to minimize drag and maximize glide and efficiency. The result: a responsive, sharp, and fluid stabilizer that releases effortlessly while maintaining continuous and progressive support. You'll experience consistent drive, a true connection with the wave, and above all, perfect control at top speed, enhanced by the effect of the upturned tips acting like true winglets, reducing energy loss and unwanted movement at high speeds. At low speeds, it doesn't fade into the background: you maintain lift, support, and a balanced feel, without ever "falling through". That was the whole challenge: to obtain a foil that rolls freely, is very "surfy", while remaining efficient and stable in light winds.

Program:

The range is aimed at both committed wingers focused on carving and demanding surf foilers, looking for the ideal combination of connection, pumping and free expression in the wave, and the downwinder who loves beautiful lines.

It allows you to adjust your curves in an instinctive, fluid and totally intuitive way, for a lively, efficient and inspired glide.

Specifications

Surface area (cm2) Wingspan (mm) Aspect Ratio Maximum rope length (mm) Thickness (mm) Construction Weight (kg) Screw size (mm) Compatibility
130 360 10 68 5 HR Carbon + HM Carbon / Monolithic 0.1 12mm Torx 30 All AFS fuselages
140 375 10 72 5 HR Carbon + HM Carbon / Monolithic 0.1 12mm Torx 30 All AFS fuselages
150 390 10 76 5 HR Carbon + HM Carbon / Monolithic 0.1 12mm Torx 30 All AFS fuselages
160 400 10 80 5 HR Carbon + HM Carbon / Monolithic 0.1 12mm Torx 30 All AFS fuselages
View AllClose

Additional Information

year:
2026
Size:
130 / 140 / 150 / 160
Aspect Ratio:
10.0
