F-One

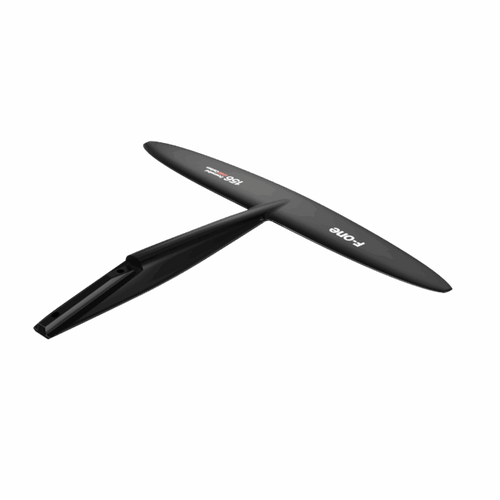

2026 F-One Monobloc DW Tail

(No reviews yet) Write a Review
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
  • 2026 F-One Monobloc DW Tail - 136
  • 2026 F-One Monobloc DW Tail - 156

Expected release date is 13th Apr 2026

$479.00

Frequently bought together:

Description

2026 Monobloc DW Tail

Feel the connection.

Sizes: 85 / 95 / 105 / 115 / 125 / 135 / 136 / 156 / 176


What F-One has to say:

The new Monobloc Tails DW are designed to enhance your downwind sessions with more glide, control, and efficiency. With their refined outlines and longer fuselages, they bring a perfect balance of stability and forward projection for high-performance foiling in all conditions.

Features:

  • Optimized for experienced downwind riders
  • Made for high speeds, long downwinds, and offshore surfing
  • Smaller surface area = greater speed / longer fuselage = greater stability
  • Maximum forward projection
  • Tailored for SEVEN SEAS and EAGLE X foils

Presentation:

With an aspect ratio of 9.0, these Monobloc Tails DW are optimized to provide a greater glide, a smoother take-off and improved low-end performance, while ensuring a stable, comfortable ride and excellent stability at speed.

The longer fuselages provide pitch stability, which is a great advantage in strong wind conditions where the foil will cross bumps without jolting or over-power. It also offers better forward projection and more efficient pumping.

Their reduced surface area contributes to greater speed and responsiveness. A slight dihedral angle has been added to improve roll and make this Monobloc Tail more playful than the previous version. This dihedral angle also provides better stability when pivoting, making it an ideal choice to accompany foils from the SEVEN SEAS and EAGLE X ranges.

The Monobloc Tail DW is your go-to choice for performance downwind foiling and endlessly chasing bumps.

* Downwinding requires physical preparation, proper security devices (ie. leash, flashlight, safety vest), and assistance at sea. Please do not attempt any downwinders alone nor without proper training.

Technology:

  • MONOBLOC TAIL - The monobloc construction improves stiffness and reduces turbulence by eliminating connections and providing a more streamlined design. This premium connection will make any foil more playful, more stable, and faster. The monobloc also removes two screws; you’ll be on the water faster!
  • ULTRA HIGH MODULUS (UHM) CARBON - Our UHM Carbon fiber layup helps you reach the next level in terms of rigidity, precision, instant feedback, and control, giving you the edge you need for superior performance. Incorporated on select foils, it is the perfect choice for those who demand the best.

F-One Foil Hardware Guide

F-One Foil Hardware Guide

Connection Head Qty and Length Diameter
FW to RW Tail Split Carbon Fuse Recessed Star 2 x 25mm M6
RW Stabilizer to Fuse Recessed Star 2 x 15mm M6
Mast to Titan Mast Foot Recessed Star 2 x 25mm M6
Mast to Top Plate Recessed Star 2 x 25mm M6
Mast to Carbon FW Fuse Recessed Star 3 x 30/32mm M6
Mast to Aluminum Fuse Recessed Star 2 x 25mm M6
Mast Plate to Board Recessed Star 4 x 25mm M6
FCT front wing Recessed Star 4 x 14mm M6
4-Point Foil Mount Adapter Plate Recessed Star 4 x 15mm M6

Specifications

Size Area (cm2) Span (cm) Aspect Ratio Weight (kg)
Monobloc Tail DW 136 XS 136 35 9.0 TBC
Monobloc Tail DW 156 XXS 156 37.5 9.0 TBC
Monobloc Tail DW 176 XXS 176 40 9.1 TBC
Monobloc Tail DW COMP 85 XS 85 37.5 16.5 TBC
Monobloc Tail DW COMP 95 XS 95 37.5 14.8 TBC
Monobloc Tail DW COMP 105 XS 105 39.5 14.9 TBC
Monobloc Tail DW COMP 115 XS 115 41.5 15 TBC
Monobloc Tail DW COMP 125 XS 125 39 12.2 TBC
Monobloc Tail DW COMP 135 XXS 135 40 11.9 TBC

Recommended Plane

Monobloc Tail Front Wing (First Choice) Front Wing (Second Choice)
Monobloc Tail DW 136 XS EAGLE X 500
EAGLE X 600
EAGLE X 700
EAGLE X 800
SEVEN SEAS 1100
SEVEN SEAS 1200EAGLE 690
EAGLE 790
EAGLE 890MOMENTUM 516
MOMENTUM 616
MOMENTUM 716
Monobloc Tail DW 156 XXS EAGLE X 900
EAGLE X 1000
SEVEN SEAS 1100
SEVEN SEAS 1200
SEVEN SEAS 1300EAGLE 1090MOMENTUM 816
Monobloc Tail DW 176 XXS - SEVEN SEAS 1400
SEVEN SEAS 1500
SEVEN SEAS 1600EAGLE 1190
EAGLE 1290MOMENTUM 916
Monobloc Tail DW COMP 115 XS MOMENTUM 516 EAGLE X 500
EAGLE X 600
Monobloc Tail DW COMP 125 XS MOMENTUM 616
MOMENTUM 716
EAGLE X 700
EAGLE X 800
Monobloc Tail DW COMP 135 XXS MOMENTUM 816
MOMENTUM 916
EAGLE X 900
EAGLE X 1000

What's Included

  • Monobloc Tail Wing
  • EVA Soft Cover
  • Hardware
View AllClose

Additional Information

year:
2026
Includes:
Tail Wing, Cover, Hardware
Item Type:
Rear Wings
Size:
85 / 95 / 105 / 115 / 125 / 135 / 136 / 156 / 176
Material:
UHM Carbon
Span (mm):
85 / 95 / 105 / 115 / 125 / 135 / 136 / 156 / 176
